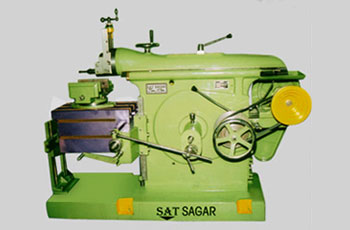

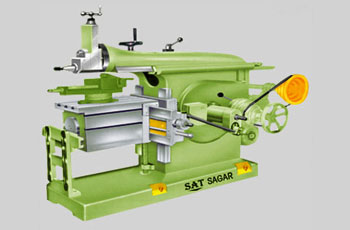

Shaping Machine Model 24" to 36" Stroke

Home Shaping Machine Model 24" to 36" Stroke

Shaping Machine Model 24" to 36" Stroke


heavy duty shaper machines manufacturers, exporters in ludhiana, punjab and india
shaping machines manufacturers in ludhiana, shaping machines manufacturers in punjab, shaping machines manufacturers in india
shaper machines manufacturers in ludhiana, punjab


Specifications :

Capacity SAT 12 SAT 18 SAT 24 SAT 30 SAT 32 SAT 36
Lenth of Ram Stroke 305 457 610 762 815 915
Lenth of Ram

660

990 1219 1378 1610 1740
Lenth Width Ram Bearing 660x178 762x267 914x278 1040x279 1135x305 1190x390
Max Minimum Distance from Table to Ram 257x41 407x89 457x89 508x114 500x140 521x140
Table
Working Surface of Table 306x228 407x292 483x330 610x362 380x810 457x915
Max Table Traval-Horizovtal 419 508 610 762 810 870
Max Table Traval-vertical 140 330 375 432 390 390
Angolar Movement of Table on Ether side 60L 60R 60L 60R 60L 60R 60L 60R 60L 60R Fixed
Tool Head
Maximum size of tool Shank Accommodated 16x22 32x16 51x21 51x21 38x21 38x21
Max. Vertical Travel of Tool Slide 140 150 150 150 180 200
Max. Swivel of Tool Head 60L 60R 60L 60R 60L 60R 60L 60R 60L 60R 60L 60R
Speed feeds
Dia of Clutch Pulley 235 311 311 311 405 405
Range of Ram Speed (Stroke Per Minte) 30, 60, 90 17, 25, 50, 75 12, 24, 48, 72 10, 24, 45, 70 12, 25, 40, 67 12, 25, 40, 67
Dia of Motor Pulley 76 89 89 89 100 100
Range of Table Feed Per Stroke of Ram 0.229 0.229 0.229 0.229-0.687 0.229-0.687 0.229-0.687
Range of Tool Head Feed Hand feed Hand feed Hand feed Hand feed Hand feed Hand feed
Drive Electrical Equipments
Phase Electric main Drive Motor 1.5 HP 2 HP 3 HP 5 HP 5 HP 5 HP
Speed R.P.M 960 960 960 960 960 960
V-Belt Saction 8-35 8-55 8-57 8-57 8-72 8-72
Main Switch Starter (Push Botton) 3.5 AMP 3.5 AMP 5 AMP 15 AMP 15 AMP 15 AMP
